Name: High Voltage YJLLW02 XLPE Armored Cable 35kV~230kV - Home
SKU: YJLV-15KV-1

Overview

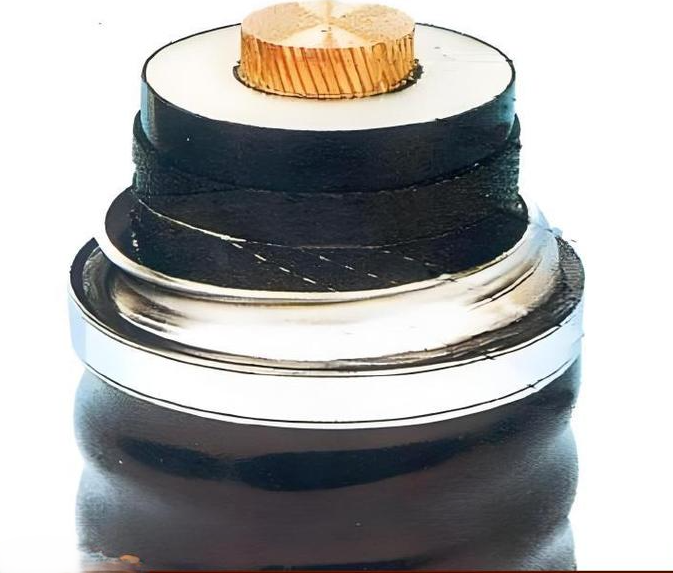

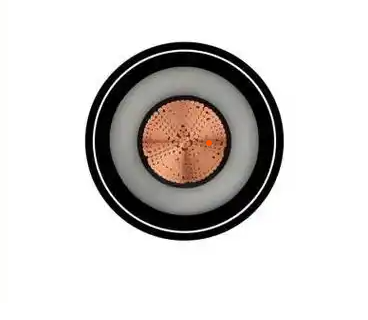

110kV/220kV XLPE Insulated HV Cable with Corrugated Aluminum Sheath and PE Jacket.

Cross Section Area: 1*0.5 mm², 1*0.75 mm², 1*1.0 mm², 1*1.5 mm², 1*10.0 mm², 1*16.0 mm², 1*2.5 mm²

No. of Cores:1

Rated Voltage: 35kV~230kV

Type：High Voltage

Jacket：PE

Color：Black

Conductor Material：Copper

Insulation Material：XLPE

Packing：Standard Packing

Working Temperature:20℃-90℃

Nominal cross section mm²	Diameter of Conductor Copper mm	Semiconductor Conductive Tape （T/ D）mm	conductor shielding （T/ D）mm	Insulated （T/ D）mm	insulation shielding （T/ D）mm	Semiconductor Water-Swelling Buffer Layer‌ （ D）mm	Wrinkled Aluminum Sheath （ D）mm	PVC/XLPE sheath （D）mm	Ref. Weight kg/km
240	17.6	17.96	1.2/20.36	19/19.1	1/60.56	66.56	77.56	86.66	6035.65
300	19.7	20.06	1.2/22.46	18.5/18.6	1/61.66	67.66	78.66	87.76	6280.20
400	22.3	22.66	1.2/25.06	17.5/17.6	1/62.26	68.26	79.26	88.36	6504.32
500	26.5	26.86	1.2/29.26	17/17.1	1/65.46	71.46	82.46	91.56	7059.13
630	30	30.36	1.2/32.76	16.5/16.6	1/67.96	73.96	84.96	95.06	7816.41
800	34.1	34.46	1.2/36.86	16/16.1	1/71.06	77.06	89.06	99.16	8594.30
1000	39.8	41.4	1.5/44.4	16/16.1	1.2/79	85	97.6	107.7	10345.62
1200	42.8	44.4	1.5/47.4	16/16.1	1.2/82	88	100.6	111.7	11328.17
1400	45.8	47.4	1.5/50.4	16/16.1	1.2/85	91	103.6	114.7	12177.29
1600	48.8	50.4	1.5/53.4	16/16.1	1.2/88	94	106.6	117.7	13026.42

Nominal cross section mm²	Diameter of Conductor Copper mm	Semiconductor Conductive Tape (T/ D) mm	conductor shielding (T/ D) mm	Insulated (T/ D) mm	insulation shielding (T/ D) mm	Semiconductor Water-Swelling Buffer Layer (D) mm	Wrinkled Aluminum Sheath (D) mm	PVC/XLPE sheath (D) mm	Ref.Wehm
240	17.6	17.96	1,2/20.36	19/19.1	1/60.56	66.56	77.56	86.66	6035.65
300	19.7	20.06	1,2/22.46	18.5/18.6	1/61.66	67.66	78.66	87.76	6280.20
400	22.3	22.66	1,2/25.06	17.5/17.6	1/62.26	68.26	79.26	88.36	6504.32
500	26.5	26.86	1,2/29.26	17/17.1	1/65.46	71.46	82.46	91.56	7059.13
630	30	30.36	1,2/32.76	16.5/16.6	1/67.96	73.96	84.96	95.06	7816.41
800	34.1	34.46	1,2/36.86	16/16.1	1/71.06	77.06	89.06	99.16	8594.30
1000	39.8	41.4	1,5/44.4	16/16.1	1,2/79	85	97.6	107.7	10345.62
1200	42.8	44.4	1,5/47.4	16/16.1	1,2/82	88	100.6	111.7	11328.17
1400	45.8	47.4	1,5/50.4	16/16.1	1,2/85	91	103.6	114.7	1217.29
1600	48.8	50.4	1,5/53.4	16/16.1	1,2/88	94	106.6	117.7	13026.42

Features

Key Features of YJLLW02 High Voltage Cable

1. Reliable Waterproofing & 100% Moisture Barrier
The Corrugated Aluminum Sheath (W) provides a seamless, robust metal barrier. This design ensures 100% radial water blocking, preventing any moisture from reaching the XLPE insulation, which is critical for the long-term reliability of high-voltage transmission lines.
2. Excellent Flame Retardancy (PVC Advantage)
The PVC Outer Sheath (02) is naturally flame-retardant and self-extinguishing. This makes YJLLW02 the preferred choice for installations in cable tunnels, shafts, and indoor power stations where fire safety is a top priority.
3. Superior Mechanical Protection & Flexibility
The corrugated aluminum layer offers much higher mechanical strength than lead-sheathed cables while remaining lightweight. Its “bellows-like” structure provides a perfect balance between crush resistance and bending flexibility, simplifying the installation process in complex terrains.
4. High Temperature & Current Capacity
Equipped with XLPE insulation, the cable supports a continuous operating temperature of 90°C and can withstand short-circuit temperatures up to 250°C. This ensures high power transmission efficiency and a service life exceeding 30 years.
5. Biological Protection
The metallic sheath acts as a natural physical shield against termites and rodents, ensuring the cable core remains undamaged in underground environments.

Application

Applications of YJLLW02 HV Cable

Urban Power Grids: The standard solution for underground 110kV and 220kV transmission lines in high-density urban areas.
Cable Tunnels & Shafts: Due to its flame-retardant PVC jacket, it is ideal for use in tunnels where fire spread prevention is mandatory.
Substation Connections: Used as a high-reliability link between power plants, substations, and the regional grid.
Industrial Infrastructure: Supplies stable energy to heavy industries like steel mills, chemical plants, and large-scale manufacturing hubs.
