Overview
| Model NO. | YJLW02 | Application | Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Transformer |
| Voltage | High Voltage Cable | Current | AC Cable |
| Insulation Material | XLPE | Sheath Material | PVC |
| Material Shape | Flat Wire | Wire Core Material | Red Copper Wire |
| Certification | ISO, CCC, CE, RoHS, VDE | Model | Yjlw02 |
| Brand | Cangzhouhuiyou | Voltage Type | 64/110kv |
| Company Name | Cangzhou Huiyou Cable Stock Co., Ltd | Trademark | CANGZHOUHUIYOU |
| Transport Package | Iron Wood Shaft | Specification | 1*1600mm2 |
| Origin | China | HS Code | 8544601300 |
| Nominal cross section mm² | Diameter of Conductor Copper mm | Semiconductor Conductive Tape （T/ D）mm | conductor shielding （T/ D）mm |
Insulated （T/ D）mm | insulation shielding （T/ D）mm |
Semiconductor Water-Swelling Buffer Layer （ D）mm |
Wrinkled Aluminum Sheath （ D）mm |
PVC/XLPE sheath （D）mm |
Ref. Weight kg/km |
| 240 | 17.6 | 17.96 | 1.2/20.36 | 19/19.1 | 1/60.56 | 66.56 | 77.56 | 86.66 | 6035.65 |
| 300 | 19.7 | 20.06 | 1.2/22.46 | 18.5/18.6 | 1/61.66 | 67.66 | 78.66 | 87.76 | 6280.20 |
| 400 | 22.3 | 22.66 | 1.2/25.06 | 17.5/17.6 | 1/62.26 | 68.26 | 79.26 | 88.36 | 6504.32 |
| 500 | 26.5 | 26.86 | 1.2/29.26 | 17/17.1 | 1/65.46 | 71.46 | 82.46 | 91.56 | 7059.13 |
| 630 | 30 | 30.36 | 1.2/32.76 | 16.5/16.6 | 1/67.96 | 73.96 | 84.96 | 95.06 | 7816.41 |
| 800 | 34.1 | 34.46 | 1.2/36.86 | 16/16.1 | 1/71.06 | 77.06 | 89.06 | 99.16 | 8594.30 |
| 1000 | 39.8 | 41.4 | 1.5/44.4 | 16/16.1 | 1.2/79 | 85 | 97.6 | 107.7 | 10345.62 |
| 1200 | 42.8 | 44.4 | 1.5/47.4 | 16/16.1 | 1.2/82 | 88 | 100.6 | 111.7 | 11328.17 |
| 1400 | 45.8 | 47.4 | 1.5/50.4 | 16/16.1 | 1.2/85 | 91 | 103.6 | 114.7 | 12177.29 |
| 1600 | 48.8 | 50.4 | 1.5/53.4 | 16/16.1 | 1.2/88 | 94 | 106.6 | 117.7 | 13026.42 |
| Nominal cross section mm² |
Diameter of Conductor Copper mm |
Semiconductor Conductive Tape (T/ D) mm |
conductor shielding (T/ D) mm |
Insulated (T/ D) mm |
insulation shielding (T/ D) mm |
Semiconductor Water-Swelling Buffer Layer (D) mm |
Wrinkled Aluminum Sheath (D) mm |
PVC/XLPE sheath (D) mm |
Ref.Wehm |
|---|---|---|---|---|---|---|---|---|---|
| 240 | 17.6 | 17.96 | 1,2/20.36 | 19/19.1 | 1/60.56 | 66.56 | 77.56 | 86.66 | 6035.65 |
| 300 | 19.7 | 20.06 | 1,2/22.46 | 18.5/18.6 | 1/61.66 | 67.66 | 78.66 | 87.76 | 6280.20 |
| 400 | 22.3 | 22.66 | 1,2/25.06 | 17.5/17.6 | 1/62.26 | 68.26 | 79.26 | 88.36 | 6504.32 |
| 500 | 26.5 | 26.86 | 1,2/29.26 | 17/17.1 | 1/65.46 | 71.46 | 82.46 | 91.56 | 7059.13 |
| 630 | 30 | 30.36 | 1,2/32.76 | 16.5/16.6 | 1/67.96 | 73.96 | 84.96 | 95.06 | 7816.41 |
| 800 | 34.1 | 34.46 | 1,2/36.86 | 16/16.1 | 1/71.06 | 77.06 | 89.06 | 99.16 | 8594.30 |
| 1000 | 39.8 | 41.4 | 1,5/44.4 | 16/16.1 | 1,2/79 | 85 | 97.6 | 107.7 | 10345.62 |
| 1200 | 42.8 | 44.4 | 1,5/47.4 | 16/16.1 | 1,2/82 | 88 | 100.6 | 111.7 | 11328.17 |
| 1400 | 45.8 | 47.4 | 1,5/50.4 | 16/16.1 | 1,2/85 | 91 | 103.6 | 114.7 | 1217.29 |
| 1600 | 48.8 | 50.4 | 1,5/53.4 | 16/16.1 | 1,2/88 | 94 | 106.6 | 117.7 | 13026.42 |
Features
Key Features of YJLLW02 High Voltage Cable
1. Reliable Waterproofing & 100% Moisture Barrier
The Corrugated Aluminum Sheath (W) provides a seamless, robust metal barrier. This design ensures 100% radial water blocking, preventing any moisture from reaching the XLPE insulation, which is critical for the long-term reliability of high-voltage transmission lines.
2. Excellent Flame Retardancy (PVC Advantage)
The PVC Outer Sheath (02) is naturally flame-retardant and self-extinguishing. This makes YJLLW02 the preferred choice for installations in cable tunnels, shafts, and indoor power stations where fire safety is a top priority.
3. Superior Mechanical Protection & Flexibility
The corrugated aluminum layer offers much higher mechanical strength than lead-sheathed cables while remaining lightweight. Its “bellows-like” structure provides a perfect balance between crush resistance and bending flexibility, simplifying the installation process in complex terrains.
4. High Temperature & Current Capacity
Equipped with XLPE insulation, the cable supports a continuous operating temperature of 90°C and can withstand short-circuit temperatures up to 250°C. This ensures high power transmission efficiency and a service life exceeding 30 years.
5. Biological Protection
The metallic sheath acts as a natural physical shield against termites and rodents, ensuring the cable core remains undamaged in underground environments.
Application
Applications of YJLLW02 HV Cable
Urban Power Grids: The standard solution for underground 110kV and 220kV transmission lines in high-density urban areas.
Cable Tunnels & Shafts: Due to its flame-retardant PVC jacket, it is ideal for use in tunnels where fire spread prevention is mandatory.
Substation Connections: Used as a high-reliability link between power plants, substations, and the regional grid.
Industrial Infrastructure: Supplies stable energy to heavy industries like steel mills, chemical plants, and large-scale manufacturing hubs.
Cable Tunnels & Shafts: Due to its flame-retardant PVC jacket, it is ideal for use in tunnels where fire spread prevention is mandatory.
Substation Connections: Used as a high-reliability link between power plants, substations, and the regional grid.
Industrial Infrastructure: Supplies stable energy to heavy industries like steel mills, chemical plants, and large-scale manufacturing hubs.

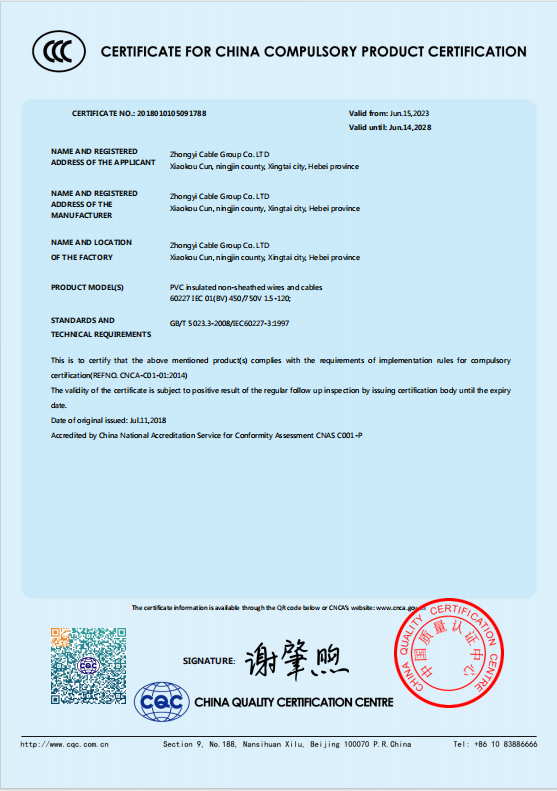

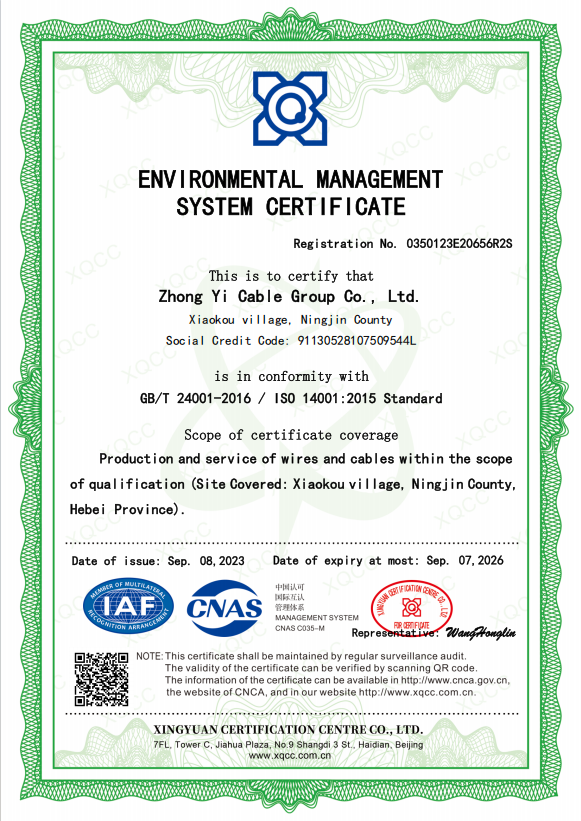

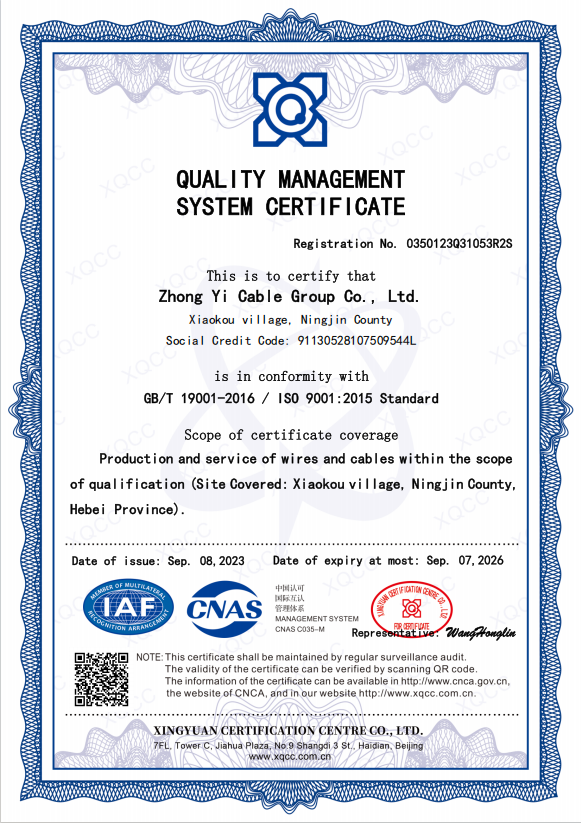

Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.To date, our products have powered infrastructure projects in more than 50 countries. Our global footprint covers South & North America (40%), Europe (10%), and across Asia and the Middle East (50%). Operated by a dedicated team of 200+ skilled professionals, we integrate advanced manufacturing technology with strict quality control to deliver excellence at every meter.
2. How can we guarantee quality?
Quality is the lifeline of our factory. We implement a rigorous Total Quality Management (TQM) system through every stage of production:
Raw Material Inspection: We only source premium copper and aluminum to ensure maximum conductivity.
Pre-Production Sampling: A pre-production sample is always created and tested against your specific requirements before mass production begins.
In-Process Monitoring: Our advanced production lines feature real-time monitoring for insulation thickness and diameter consistency.
Final Pre-Shipment Inspection: A comprehensive final inspection and laboratory testing are mandatory for every batch to ensure 100% compliance with international standards before dispatch.
Raw Material Inspection: We only source premium copper and aluminum to ensure maximum conductivity.
Pre-Production Sampling: A pre-production sample is always created and tested against your specific requirements before mass production begins.
In-Process Monitoring: Our advanced production lines feature real-time monitoring for insulation thickness and diameter consistency.
Final Pre-Shipment Inspection: A comprehensive final inspection and laboratory testing are mandatory for every batch to ensure 100% compliance with international standards before dispatch.
3.What can you buy from us?
High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, BV Wire,PVC Insulated Wire,Flexible Cable,Welding Cable,Mining Cable,Solar Cable,Control Cable,Power Cable.
4. Why should you buy from us not from other suppliers?
Direct Factory Advantage: By purchasing directly from our facility, you eliminate middlemen, ensuring the most competitive wholesale pricing and direct technical support.
30 Years of R&D Excellence: Our engineering team brings over a decade of specialized R&D experience. We don’t just manufacture; we innovate. We have spent 30 years perfecting our formulas for durability, conductivity, and safety.
Comprehensive OEM & ODM Services: We fully support customized branding, specific standard manufacturing (IEC, UL, VDE), and tailored packaging. Whether you need a unique sheath color or a specialized conductor structure, we deliver.
Proven Reliability: We focus on long-term partnerships. Our cables are built to perform in the harshest industrial environments, backed by a legacy of trusted supply to over 50+ countries.
30 Years of R&D Excellence: Our engineering team brings over a decade of specialized R&D experience. We don’t just manufacture; we innovate. We have spent 30 years perfecting our formulas for durability, conductivity, and safety.
Comprehensive OEM & ODM Services: We fully support customized branding, specific standard manufacturing (IEC, UL, VDE), and tailored packaging. Whether you need a unique sheath color or a specialized conductor structure, we deliver.
Proven Reliability: We focus on long-term partnerships. Our cables are built to perform in the harshest industrial environments, backed by a legacy of trusted supply to over 50+ countries.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF.
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi.
